Microwire

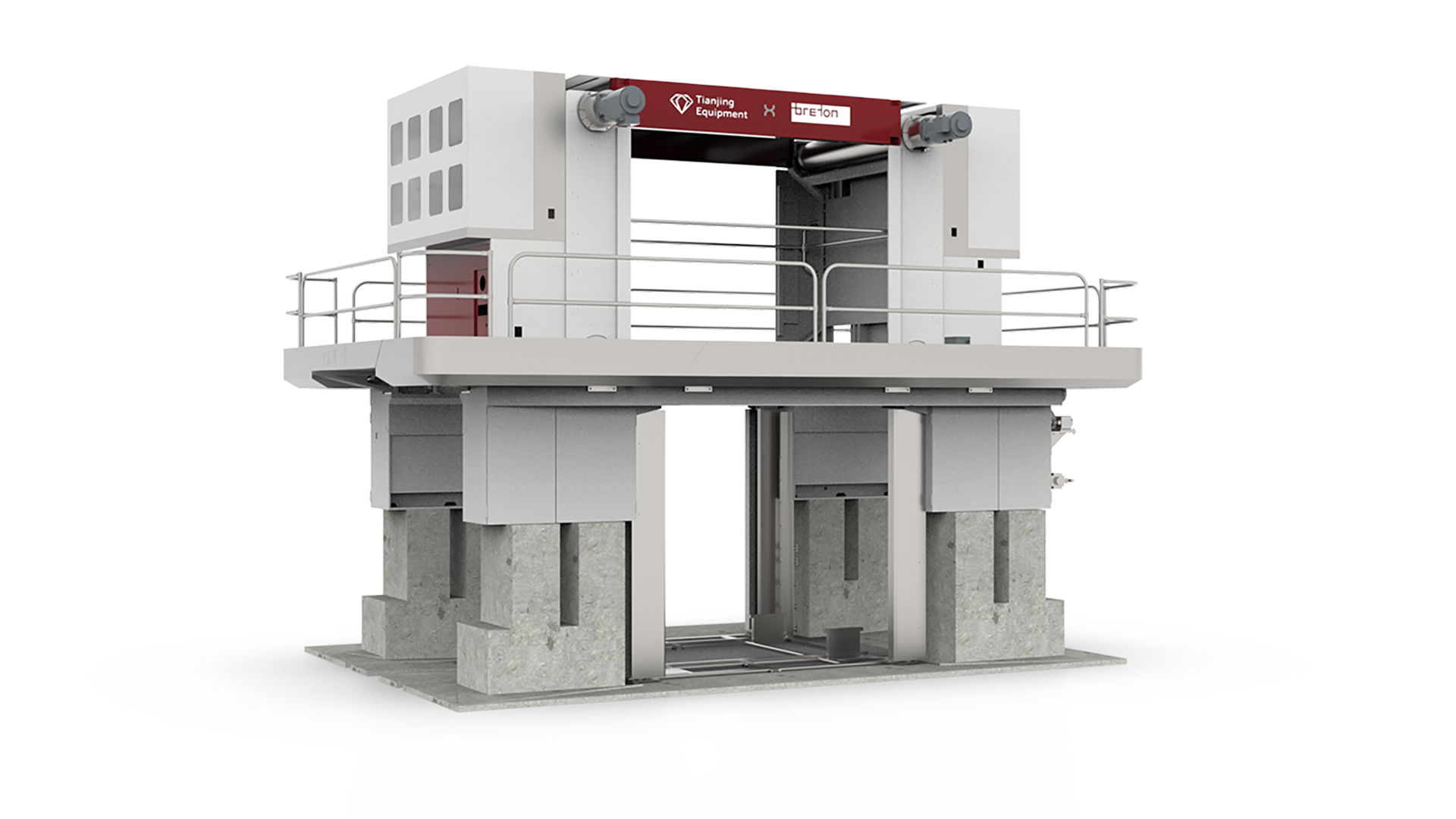

Ultra-thin diamond-wire cutting machine for marble and travertine blocks.

Designed by Tianjing Equipment and now distributed by Breton, Microwire incorporates the expertise gained from more than 65 operational installations.

Microwire

Reasons why

  • 1
    Top yield performance
  • 2
    Trusted partner
  • 3
    Training, accessories, and services
  • 4
    360° logistic management
  • 5
    Compliance with CE Regulations

Get more from your marble blocks

Designed by Tianjing Equipment and distributed by Breton, Microwire is a next-generation ultra-thin diamond wire cutting machine, developed from the experience gained through more than 50 operational installations.

Microwire features a block lifting system for blocks up to 3,500 × 2,000 × 2,100 (H) mm.

The cut thickness varies depending on the pitch of the wire-driving rollers. With a standard 3.5 mm pitch and a 0.55 mm diameter wire, it is possible to cut commercial thicknesses of 20, 30, 40, and 50 mm.

The diamond wire is available in various diameters, with the most commonly used being 0.55 mm, which produces a cutting kerf of 0.6 mm.

On the optional side, the water filtration system extends the lifespan of diamond wires and protects the wire guide rollers by preventing the risk of wire slippage from the grooves. Developed in collaboration with Tianjing, the system is designed to treat water from existing recycling plants in the sawmill, ensuring a flow rate exceeding 900 liters per minute with a turbidity level (FTU) ≤ 20.

Both the machine and its accessories comply with safety standards and meet the requirements of the Machinery Directive 2006/42/EC.

Typology

Multiwire

Technology highlights

  • Made of steel, it provides outstanding resistance to deformation under working loads and ensures high cutting precision.

    / 01
    FEM-optimized load-bearing structure

  • Composed of two interconnected cast-iron structures, it provides excellent resistance to vibrations.

    / 02
    Monobloc cutting quadrilateral

  • Dynamically balanced and driven by brushless servomotors, they provide greater resistance to deformation.

    / 03
    Steel guide rollers

  • Protects the integrity of the diamond wire and provides continuity of the production process.

    / 04
    Wire tension control system

  • Allows the operator to interact easily and efficiently with the machine and the block sawing process.

    / 05
    Intuitive HMI interface

  • Included as an accessory, Breton Pulse is an intelligent monitoring and diagnostic software designed to provide real-time control of process performance. By continuously collecting data from sensors and CNC controls, the system enables analysis of the operating status and optimization of process efficiency.

    / 06
    Breton Pulse

Other versions of Microwire

Microwire
Version comparative table
Microwire
Max. dimensions of the block (length)
3500 mm
Max. dimensions of the block (width)
2000 mm
Max. dimensions of the block (height)
2100 mm
Min. cutting thickness
10 mm
Max. cutting thickness
50 mm
Min. wire lifting/lowering speed
0
Max. wire lifting/lowering speed
450 mm/h
Max. wire peripheral speed
35 m/s
Roller diameter
310 mm
Diameter of the diamond wire (new wire)
1 mm
Total installed power
297 kW
Water requirement
800 l/min
Overall dimensions (length)
9000 mm
Overall dimensions (width)
5050 mm
Overall dimensions (height)
6400 mm
