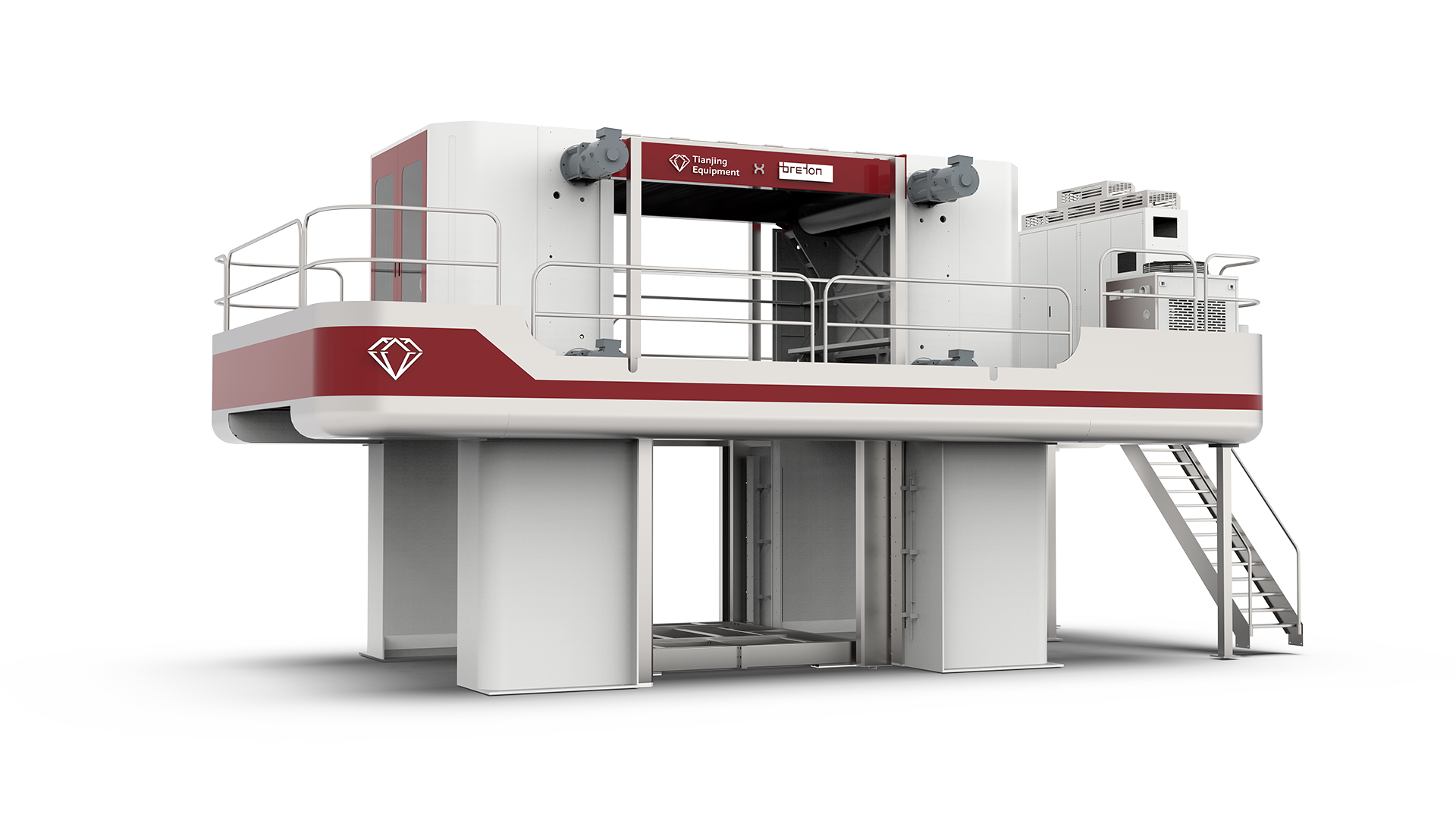

Ultra-thin diamond-wire cutting machine for marble and travertine blocks.

Designed by Tianjing Equipment and now distributed by Breton, Microwire incorporates the expertise gained from more than 65 operational installations.

Microwire

Reasons why

1

Top yield performance
2

Trusted partner
3

Training, accessories, and services
4

360° logistic management
5

Compliance with CE Regulations

Get more from your marble blocks

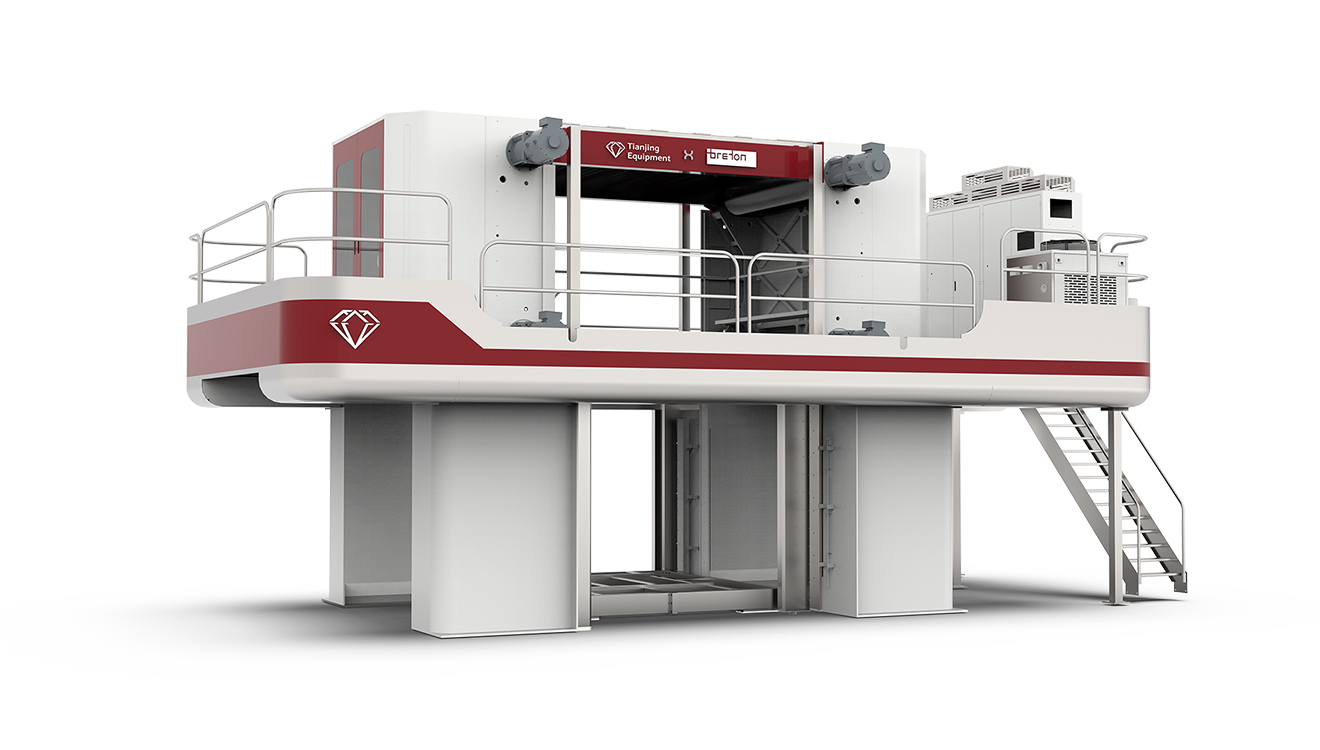

Designed by Tianjing Equipment and distributed by Breton, Microwire is a next-generation ultra-thin diamond wire cutting machine, developed from the experience gained through more than 50 operational installations.

Microwire features a block lifting system for blocks up to 3,500 × 2,000 × 2,100 (H) mm.

The cut thickness varies depending on the pitch of the wire-driving rollers. With a standard 3.5 mm pitch and a 0.55 mm diameter wire, it is possible to cut commercial thicknesses of 20, 30, 40, and 50 mm.

The diamond wire is available in various diameters, with the most commonly used being 0.55 mm, which produces a cutting kerf of 0.6 mm.

On the optional side, the water filtration system extends the lifespan of diamond wires and protects the wire guide rollers by preventing the risk of wire slippage from the grooves. Developed in collaboration with Tianjing, the system is designed to treat water from existing recycling plants in the sawmill, ensuring a flow rate exceeding 900 liters per minute with a turbidity level (FTU) ≤ 20.

Both the machine and its accessories comply with safety standards and meet the requirements of the Machinery Directive 2006/42/EC.

Typology

Multiwire

Material

Process

Industry

Technology highlights

Made of steel, it provides outstanding resistance to deformation under working loads and ensures high cutting precision.

/ 01

FEM-optimized load-bearing structure
Composed of two interconnected cast-iron structures, it provides excellent resistance to vibrations.

/ 02

Monobloc cutting quadrilateral
Dynamically balanced and driven by brushless servomotors, they provide greater resistance to deformation.

/ 03

Steel guide rollers
Protects the integrity of the diamond wire and provides continuity of the production process.

/ 04

Wire tension control system
Allows the operator to interact easily and efficiently with the machine and the block sawing process.

/ 05

Intuitive HMI interface
Included as an accessory, Breton Pulse is an intelligent monitoring and diagnostic software designed to provide real-time control of process performance. By continuously collecting data from sensors and CNC controls, the system enables analysis of the operating status and optimization of process efficiency.

/ 06

Breton Pulse

Other versions of Microwire

Version comparative table

	Microwire	Microwire
Max. dimensions of the block (length)	3500 mm	3600 mm
Max. dimensions of the block (width)	2300 mm	2300 mm
Max. dimensions of the block (height)	2100 mm	2100 mm
Min. cutting thickness	10 mm	10 mm
Max. cutting thickness	50 mm	50 mm
Min. wire lifting/lowering speed	0	0
Max. wire lifting/lowering speed	450 mm/h	450 mm/h
Max. wire peripheral speed	34 m/s	35 m/s
Roller diameter	350 mm	470 mm
Diameter of the diamond wire (new wire)	1 mm	1 mm
Total installed power	366 kW	470 kW
Water requirement	800 l/min	800 l/min
Overall dimensions (length)	12030 mm	12070 mm
Overall dimensions (width)	5906 mm	5620 mm
Overall dimensions (height)	6142 mm	5960 mm
