5-axis monobloc disc-type cutting centre

The bridge saw designed for workshops seeking intuitive operation, precision, and reliability. Breton Kore combines Breton technology with ease of use in an essential solution, designed for every workshop.

Compact in size, advanced in technology, with the full essence of Breton.

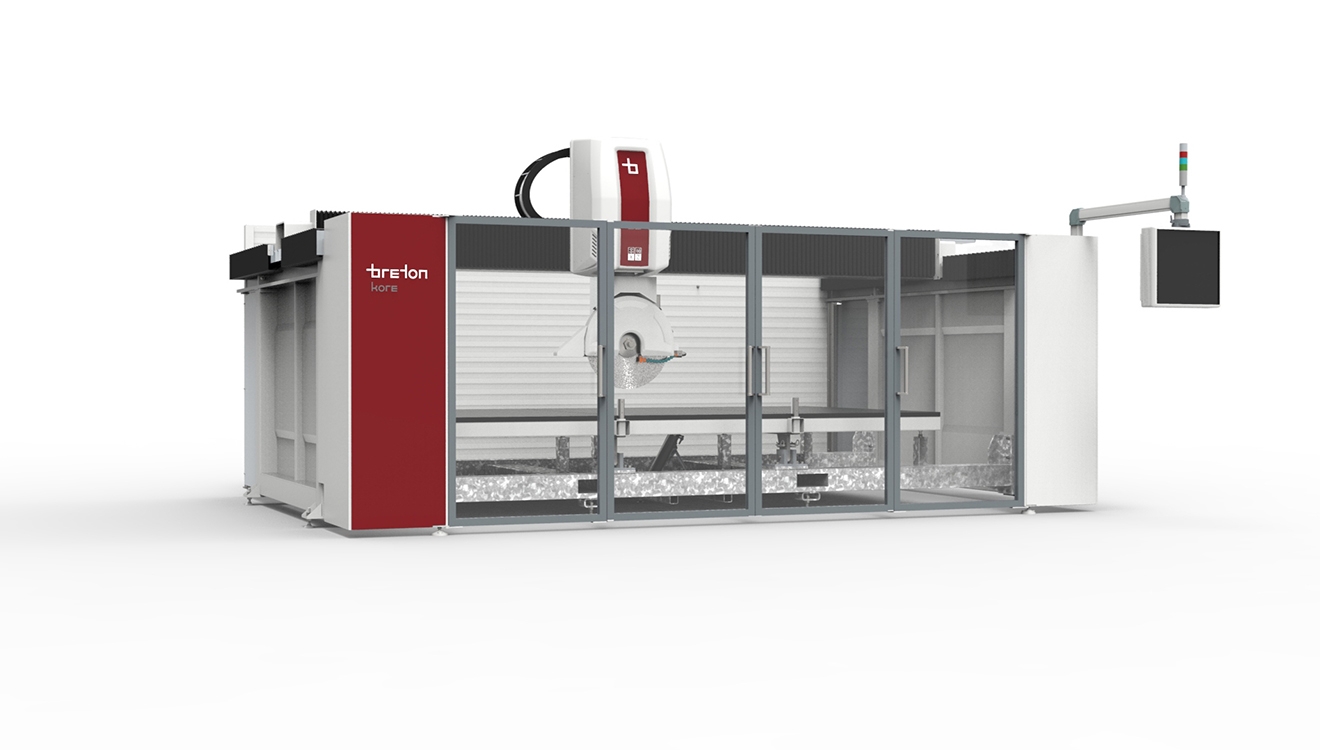

Breton Kore

Reasons why

1

The core of Breton technology, in a more accessible solution
2

Compact footprint, wide working possibilities
3

Easy to install, easy to learn, easy to use
4

Precision and reliability for everyday countertop fabrication
5

Built to grow with your workshop

The core of Breton technology

Essential, intuitive, ready to work

Breton Kore is the new 5-axis bridge saw that makes Breton technology more accessible, bringing it into workshops with different production needs.

Its monoblock structure, advanced motion systems, and new operator interface with AI-powered quick commands make the user experience simpler and more immediate. The machine supports operators in their daily tasks, facilitates learning, and helps maintain precision, consistency, and safety over time.

Designed for small and medium-sized workshops, Kore combines compactness, reliability, and innovation in an essential yet technologically advanced solution, bringing the value of Breton technology to a new generation of operators.

Materials

Compound stone

Marble

Granite

Ceramic

Terrazzo

Processes

Industries

Finished products

Spindle torque

Technological highlights

Breton Kore is equipped with continuous 5-axis CNC control, with interpolation of the X, Y and Z axes and optimized tool paths. This technology enables precise, versatile operations on marble, granite, quartz and ceramic.

/ 01

5-axis CNC control
The monobloc structure integrates the shoulders, worktable and lower crossbeams into a solid, stable configuration. This ensures fast installation, long-term reliability and consistent precision, even in compact production spaces.

/ 02

Compact and robust monobloc structure
The machine uses digital brushless motors, ground guides and recirculating ball systems to ensure smooth, accurate movement along the main axes. The result is high, repeatable cutting quality in everyday production.

/ 03

Precise motion with brushless motors
The spindle with inverter allows effective control of machining speed and is equipped with a front ½” gas connection for tools such as core drills or finger bits. Internal water flow through the spindle shaft helps cool the tool during cutting.

/ 04

Versatile spindle with inverter and ½” gas connection
The console with 18.5” wide touch monitor and joysticks provides direct, immediate machine control. The new simple, guided operator interface supports essential CAD/CAM functions and AI-powered quick commands to simplify programming.

/ 05

Simple and intuitive operator interface

Other versions of Breton Kore

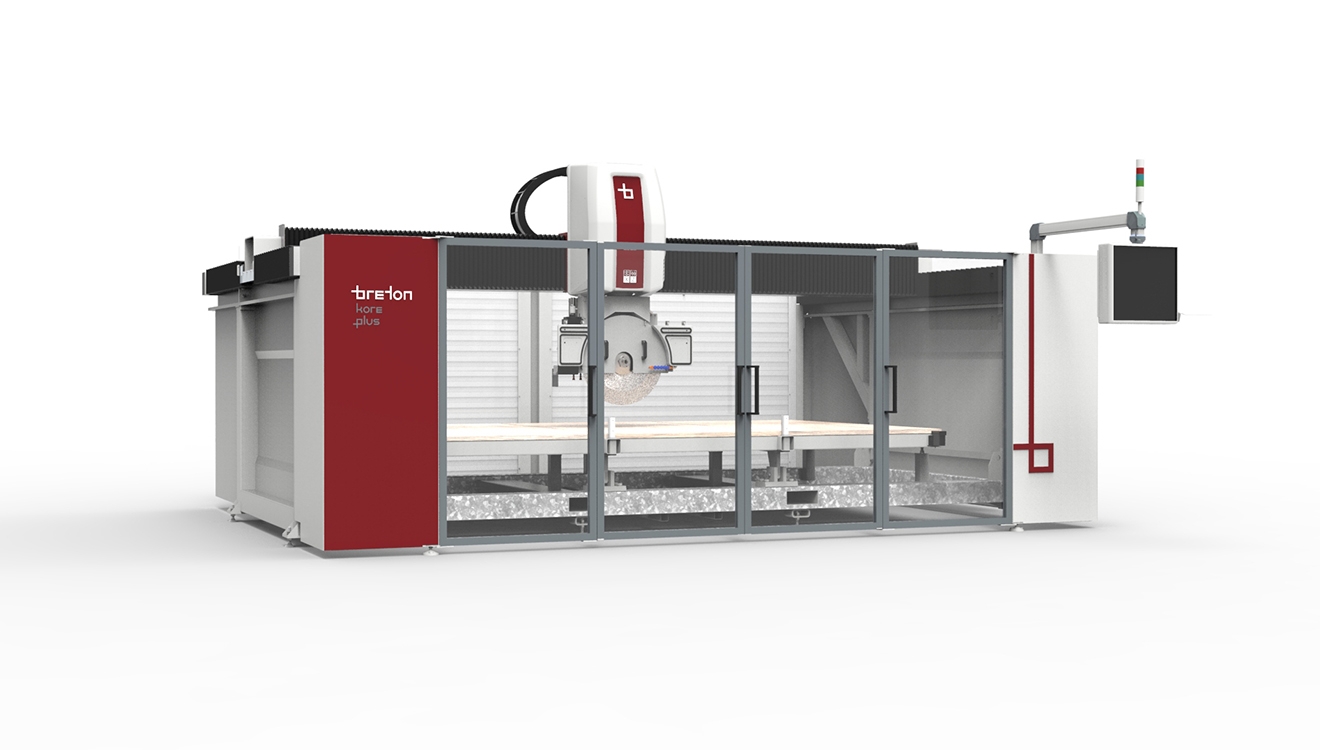

Monobloc 5-axis disc cutting centre.
Monoblock 5-axis milling machine with suction cups mounted on the spindle guard for workpiece handling.

Version comparative table

	Kore	Kore Plus
Dimensions of the worktop (width)	2100 mm	2400 mm
Dimensions of the worktop (length)	3600 mm	3800 mm
Min. saw blade diameter	350 mm	350 mm
Max. saw blade diameter	600 mm	600 mm
Max. cutting thickness (with Ø 600 mm saw blade)	150 mm	150 mm
"X" axis travel	3740 mm	3940 mm
"X" axis max. displacement speed	25000 mm/min	25000 mm/min
"Y" axis travel	2240 mm	2540 mm
"Y" axis max. displacement speed	25000 mm/min	25000 mm/min
"Z" axis travel	310 mm	310 mm
"Z" axis max. displacement speed	6000 mm/min	6000 mm/min
"C" axis rotation	0	0
"A" axis rotation	0 - 90 °	0 - 90 °
Spindle motor power (in S1 duty)	15 kW	15 kW
Spindle motor power (in S6 duty)	18 kW	18 kW
Mass	0	5800 kg
Overall dimensions (length)	4200 mm	4300 mm
Overall dimensions (width)	5600 mm	5850 mm
Overall dimensions (height)	2700 mm	2700 mm
